Hydraulic Crimping Tool HPZ 50.1

Hydraulic Crimping Tools

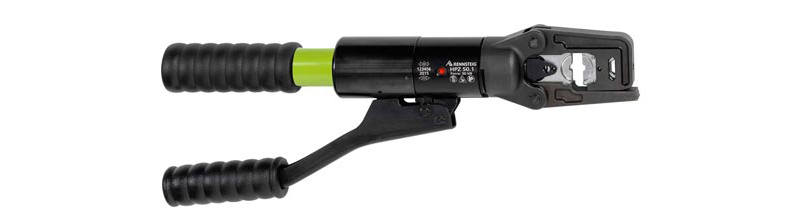

Hydraulic Crimping Tool HPZ 50.1

Products

Hydraulic two-hand crimping tool in plastic case, for crimping copper and aluminum conductors with cross-sections 10 – 185 mm²
180° rotating crimping head hinges for changing connector and die

Application	Art. No	Crimping dies	Capacity mm² Cu	Capacity mm² Al
Hexagon crimping dies for copper terminals/connectors (DIN 46 235) and aluminum terminals/connectors (DIN 46 329)	630 201 5	K 6/K 16-7	10+70	50
	630 202 5	K 8/K 12-7	16+35	10+25
	630 203 5	K 10/K 14-7	25+50	16+35
	630 204 5	K 18-5	95
	630 206 5	K 20-5	120
	630 207 5	K 22-5	150

Application	Art. No	Crimping dies	Capacity mm² Cu	Capacity mm² Al
for rounding copper and aluminum sector conductors	630 103 5	R 18	95	120
	630 104 5	R 20	120	150
	630 107 5	R 10	25	50
	630 108 5	R 14	35	70
	630 109 5	R 12	35	70
	630 110 5	R 16	50	95

Hydraulic Crimping Tool HPZ 80.1

Hydraulic Crimping Tools

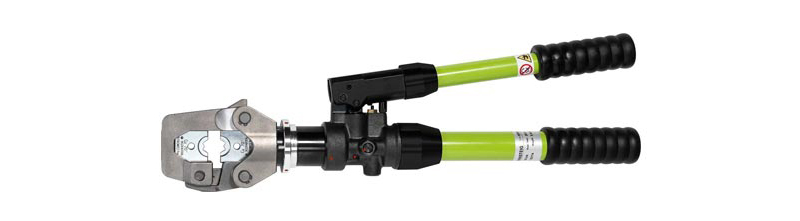

Hydraulic Crimping Tool HPZ 80.1

Products

Hydraulic two-hand crimping tool in plastic case, for crimping copper and aluminum conductors with cross-sections 10 – 400 mm²
360° rotating crimping head hinges for changing connector and die

Art. No.	Capacity mm² Cu	Capacity mm² Al	Crimp force kN	Length of tool mm	Weight of case g
HPZ 80.1
632 801 5	10 - 400	10 - 300	80	550	7000
