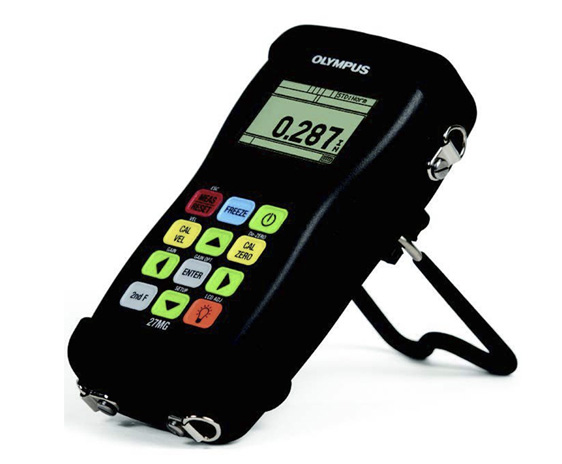

27MG Ultrasonic Thickness Gauge
Overview

The 27MG is a basic ultrasonic thickness gauge designed to make accurate measurements from one side on internally corroded or eroded metal pipes and parts.

It is lightweight, durable, and ergonomically designed for easy, one-hand operation.

27MG Ultrasonic Thickness Gauge
Key Features

Keypad Sealed, color-coded keypad with tactile and audible feedback
Case Impact-resistant and water-resistant, gasket-ed case with sealed connectors. Designed for IP65.
Dimensions (W X H X D) 84.0 mm x 152.4 mm x 39.6 mm (3.31 in. x 6.0 in. x 1.56 in.)
Weight 340 g (12 oz)
Power Supply 3 AA alkaline batteries
Battery Life Operating Time 150 h of typical battery life, 30 h continuous use with backlit
Explosive Atmosphere Safe operation as defined by Class I, Division 2, Group D, as found in the National Fire Protection Association Code (NFPA 70), Article 500, and tested using MIL-STD-810F 511.4 Procedure
Standards Designed for EN15317
Alarm Mode Programmable Hi / Low set points with audible and visual indicators
