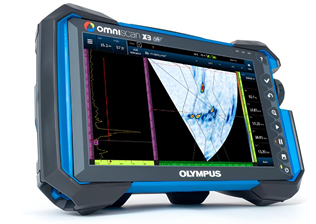

Omniscan X3
Overview

OmniScan X3 64 flaw detector's advanced focusing capabilities, which are enhanced by its larger element-aperture capacity.

This allows the use of 64-element phased array probes and 128-element aperture TFM, improving its performance for inspecting thick and attenuative materials. The device's enhanced features enable users to tackle more challenging inspections and explore new procedural applications.

Omniscan X3
Key Features

• Size (W × H × D): 335 mm × 221 mm × 151 mm (13.2 in. × 8.7 in. × 5.9 in.)
• Weight: 5.7 kg (12.6 lb) (with 1 battery)
• Wireless Connection: Yes (wireless LAN dongle included in the package)
• Connectors: 1 PA connector, 2x UT channels (2 P/R connectors each)
• Display: TFT LCD with resistive touch screen, 269 mm (10.6 in.), 1280 × 768 pixels
• Battery: 2 lithium-ion batteries (only 1 included at purchase), 93 Wh
• Battery Life: 5 hours using 2 batteries (hot-swap capable)
• Ports: 2 USB ports (one hidden behind the battery), 1 USB 3.0, HDMI video output, SDHC memory card, and Ethernet communication port
• Maximum Number of A-Scan Data Points: Up to 16,384
• Rectification: RF, full wave, half wave+, half wave-
• Filtering: Selection of low-pass (UT only), band-pass, high-pass filters, and averaging
• Ingress Protection Rating: IP65 certified (completely protected against dust and water jets from all directions)
• Shockproof Rating: Drop tested according to MIL-STD-810G
• Operating Temperature: -10°C to 45°C (14°F to 113°F)
