ProductMahr

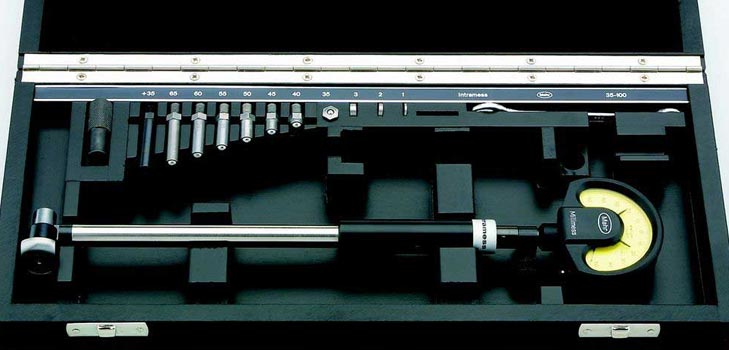

Bore Gauges & Comparators

• Large, high contrast dial face
• Adjustable tolerance markers
• Lockable fine adjustment screw
• Shockproof movement
• Mounting shank and measuring spindle are both made of hardened stainless steel
• Measuring spindle is mounted in a high precision ball guide for minimal hysteresis
• Resistant to lateral forces (side play) acting on the measuring spindle
• Maximum sensitivity and accuracy are ensured by the jeweled movement in conjunction with the precision gears and pinions
• Box type protective housing
• Constant measuring force
• Measuring spindle can be retracted with either a screw in cable release or with a lifting knob

• Large, high contrast dial face
• Adjustable tolerance markers
• Lockable fine adjustment screw
• Shockproof movement
• Mounting shank and measuring spindle are both made of hardened stainless steel
• Measuring spindle is mounted in a high precision ball guide for minimal hysteresis
• Resistant to lateral forces (side play) acting on the measuring spindle
• Maximum sensitivity and accuracy are ensured by the jeweled movement in conjunction with the precision gears and pinions
• Box type protective housing
• Constant measuring force
• Measuring spindle can be retracted with either a screw in cable release or with a lifting knob

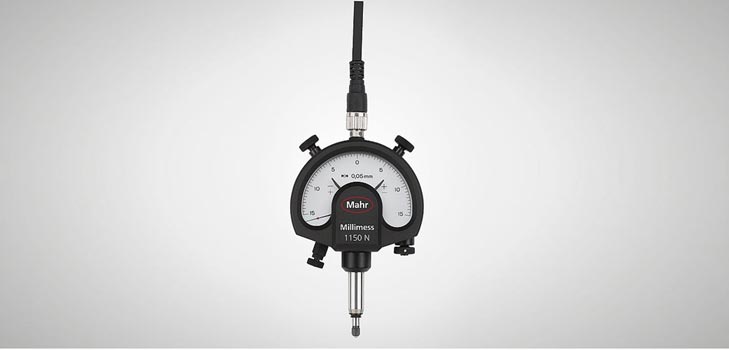

Mechanical Dial Comparator with limit contacts Millimess 1150 N Factory standard

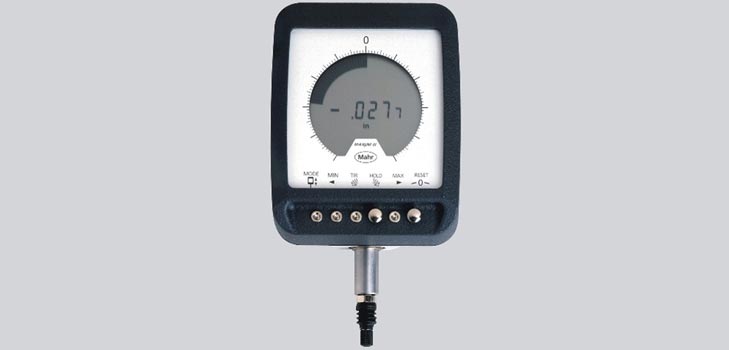

Inductive digital comparator MillimessMaxµm III

• Large, high contrast numerical and scale display with unique display of the boxes to improve the visual perception of roundness and flatness tests and during reversing point searches for bore measurements
• Replaceable dial plates
• Inductive absolute measuring system
• Metal housing with robust operating keys

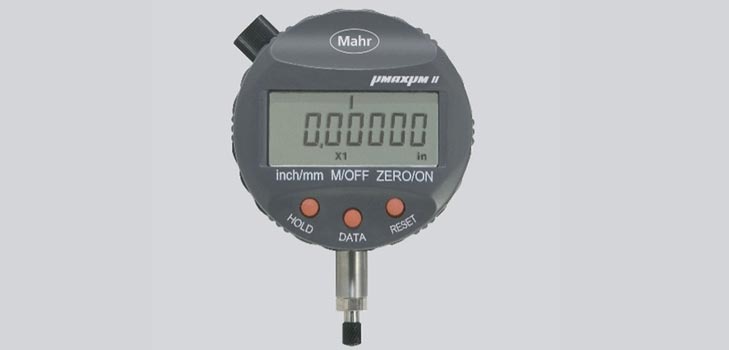

Inductive digital comparator Millimess µMaxµm II

• Inductive absolute measuring system
• Large, high-contrast display with numerical and scale display
• Operating and display unit can be rotated 270°
• Zero point setting is retained even after switching off the dial indicator

Digital probe MillimessMaxµm III

• Operating and display units with satin chrome finish
• Spindle and anvil made of hardened steel, carbide-tipped
• Hard lacquered steel frame, from 400 mm the frame is made from a steel tube to reduce weight
• Heat insulators
• Ratchet is integrated in the thimble
• Locking device
• 4 interchangeable anvils, adjustable

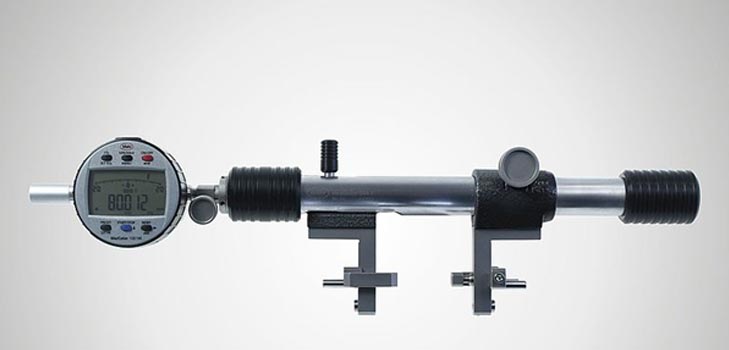

Universal measuring instrument Multimar 844 T

• Interchangeable measuring arms, anvils and stop elements (optional accessories) for easy adaptation to individual measuring tasks
• The movable measuring arm carrier is mounted in a high-precision rotary stroke bearing for reduced play and friction
• The result is high measuring sensitivity, accuracy and free movement
• Stable support elements for repeatable measurements
• Constant measuring force with integrated measuring force spring
• Reversible measuring force direction for outer and inner measurement
• Highly stable, precision-ground, hard chrome-plated guide tube
• Lightweight construction with core made from carbon fiber-reinforced plastic (CRP) tube, for measuring range 1000-1500 mm
• The stationary measuring arm holder can be moved along the guide tube and clamped for coarse adjustment
