ProductMahr
Micrometers

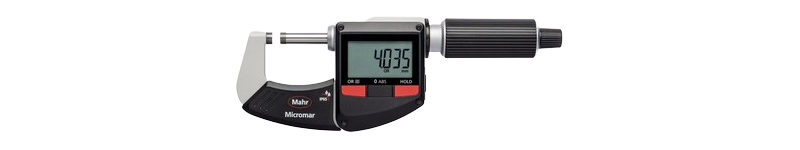

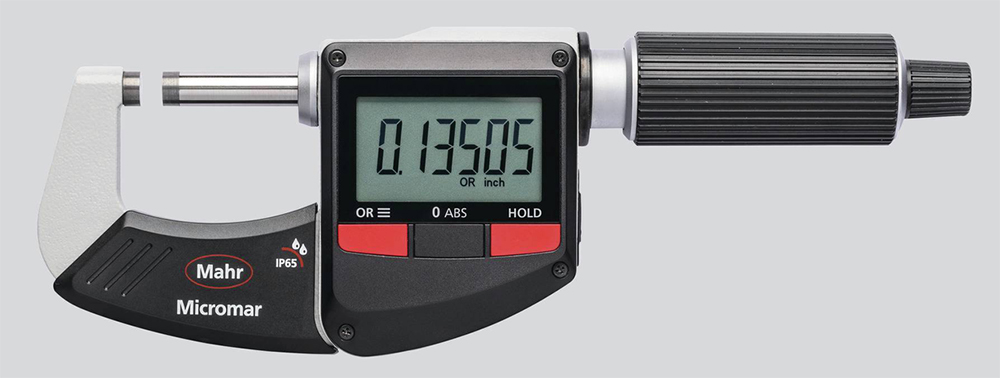

Digital micrometerMicromar 40 EWR-V For measuring thread flanks and gear diameters using quick-change measuring anvils.

IP protection category: IP 65 Data interface: MarConnect (bidirectional), USB, Digimatic DIN 863-3 Measuring range mm 50 - 75 mm Resolution mm/inch 0.001 / .00005" Package contains: instruction manual, battery, case.

• With mounting bores for measuring anvils with a shaft Ø 3.5 mm
• High contrast analog display
• Stainless spindle is hardened throughout and ground
• QUICK DRIVE
• Sliding spindle
• Ratchet is integrated in the thimble
• Lacquered steel frame, heat insulated
• High contrast analog display
• Stainless spindle is hardened throughout and ground
• Spindle and anvil are carbide-tipped
• Rapid drive
• Ratchet is integrated in the thimble
• Lacquered steel frame, heat insulated

Factory standard Measuring range inch: 7 - 8" Graduation value inches: .0001

Package contains: instruction manual, setting standard (from measuring range 1-2"), case

• Operating and display units with satin chrome finish
• Hard lacquered steel frame
• Spindle and anvil made of hardened steel, carbide-tipped
• Heat insulators
• Rapid drive with integrated ratchet
• Locking device

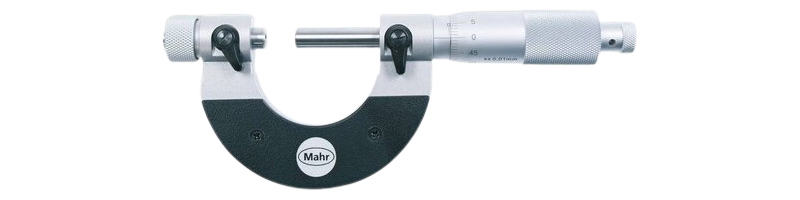

Thread micrometer Micromar 40 Z

Thread micrometer Micromar 40 Z For measuring pitch and outside diameters of external threads with interchangeable screw thread measuring anvils DIN 863-3 Measuring range mm: 50 - 75 mm Graduation value mm: 0.01 mm Package contains: case

• Operating and display units have a satin chrome finish
• Sturdy steel frame with heat insulators
• Fully hardened, ground rotating spindle with adjustable clamping lever
• Adjustable anvil
• Rotating spindle and anvil with mounting bore for interchangeable measuring anvils
• Hardened steel ball in base of the bore to attach measuring anvil shafts.

Measuring range mm: 0 – 100/100-200 mm Graduation value mm: 0.01 mm

Package contains: instruction manual, setting values 25 mm / 75 mm, case

• Operating and display units with satin chrome finish
• Hard lacquered steel frame
• Spindle and anvil made of hardened steel, carbide-tipped
• Heat insulators
• Rapid drive with integrated ratchet
• Locking device

MicrometerMicromar 40 W Factory standard Measuring range mm: 200 - 300 mm Graduation value mm: 0.01 mm Package contains: instruction manual, setting values, case.

• Operating and display units with satin chrome finish
• Spindle and anvil made of hardened steel, carbide-tipped
• Hard lacquered steel frame, from 400 mm the frame is made from a steel tube to reduce weight
• Heat insulators
• Ratchet is integrated in the thimble
• Locking device
• 4 interchangeable anvils, adjustable

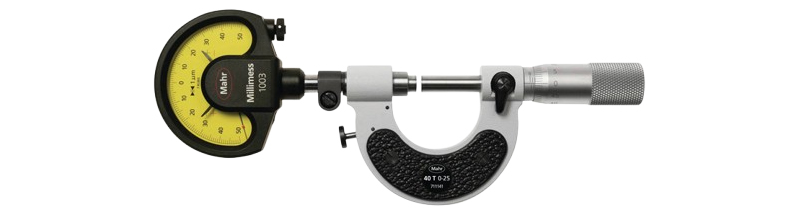

Micrometer with integrated dial comparator Micromar 40 T DIN 863-3 Measuring range mm: 150 - 200 mm Graduation value µm: 1 µm Package contains: instruction manual, case.

• Operating and display units with satin chrome finish
• Retraction of the movable anvil ensures maximum wear resistance
• Constant measuring force
• Stainless spindle is hardened throughout and ground
• Spindle and anvil are carbide-tipped
• Locking device

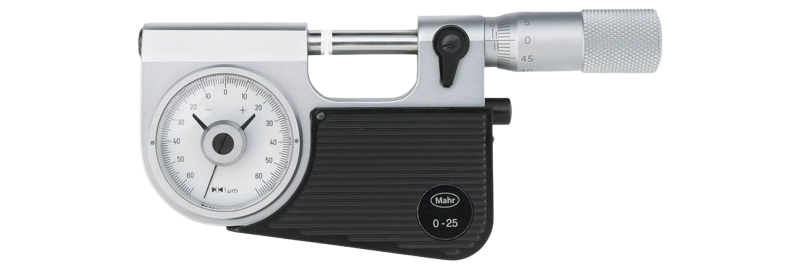

Micrometer with integrated dial comparator Micromar 40 FC Factory standard Measuring range mm: 0 - 25 mm Graduation value µm: 1 µm Package contains: instruction manual, case

• Operating and display units with satin chrome finish
• Dial comparator is integrated in frame
• Adjustable tolerance markers
• Chrome plated steel frame, heat insulated
• Retraction of the movable anvil ensures maximum wear resistance
• Spindle and anvil are carbide-tipped
• Stainless spindle is hardened throughout and ground
• Locking device
• Constant measuring force

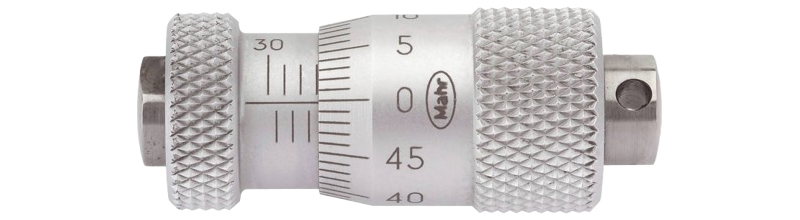

Measuring range mm: 40 - 50 mm Graduation value mm: 0.01 mm Package contains: case.

• Operating and display units with satin chrome finish
• Rigid, lightweight tubular construction
• Stainless spindle is hardened throughout and ground
• Measuring faces spherically lapped, one measuring face adjustable
• Measuring range of 100-125 mm with heat insulators and a locking device
