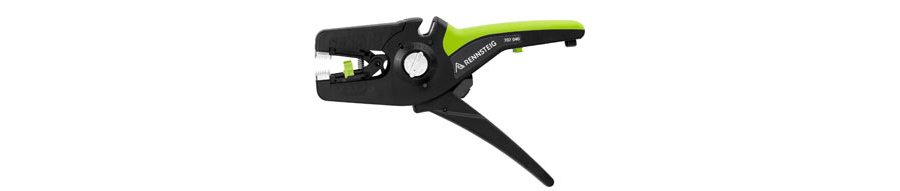

MultiStrip 16

Cable Stripping Tools
MultiStrip 16

Products
  • Self-adjusting to cable cross sections from 0.08 mm² to 16 mm² without changing blades
  • Ergonomic design due to a comfortable handle opening width (65 mm) and low weight
  • Changing the blade assembly by hand, no additional tools required
  • Low manual effort even with maximum dimensional capacity
  • Damage-free stripping through adjustable penetration depth
  • Multi-functional – because of integrated cable cutter (0.08 mm² to 16 mm²)
Art. No Capacity
mm²		 Length
mm		 Weight
g
707 040 0,08 - 16 195 200
707 041 spare blade pair
707 022 spare length stop

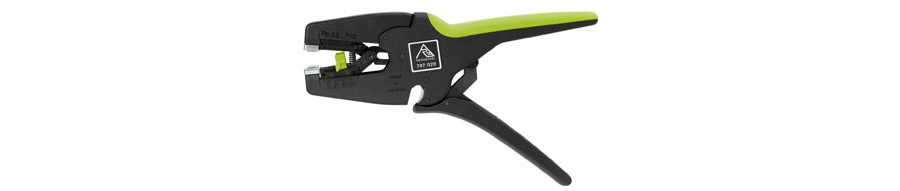

MultiStrip 10

Cable Stripping Tools
MultiStrip 10

Products
  • improved blade geometry - rugged and more durable style
  • optimized grip design with safety function for cable cutter and improved ergonomics
  • fully automatic adjustment to all solid, multi- and fine stranded conductors with PVC insulation and a number of special insulation throughout the entire capacity range of 0.03 to 10.0 mm²
  • with recessed wire cutter for Cu and Al conductors, stranded up to 10.0 mm² and single wire up to 6.0 mm²
  • Length stop easier adjustable
Art. No Capacity
mm²		 Length
mm		 Weight
g
707 020 0,03 - 10 195 200
707 021 spare blade pair
707 022 spare length stop

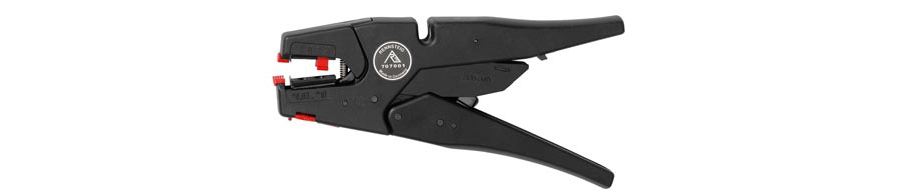

Automatic insulation stripper

Cable Stripping Tools
Automatic insulation stripper

Products
  • For stripping the most common standard insulation of single-strand, multi-strand and fine-strand conductors
  • Available in two versions for cross-section range 0.03 to 10 mm², as well as for thin ribbon cable up to 10 mm width and for cross-sectional range 2.5 to 16 mm²
  • Stripping blades automatically adjust to the cross section of cable without presetting
  • Automatic opening of clamping jaws after stripping
  • No damage to the conductors, no splitting up of the individual conductors
Art. No Capacity
mm²		 Length
mm		 Weight
g
707 001 0,03 - 10 200 210
707 002 spare blades
707 003 spare clamping jaws
707 004 spare length stop
707 011 2,5 - 16 without length stop 200 210
707 012 spare blades
707 013 spare clamping jaws

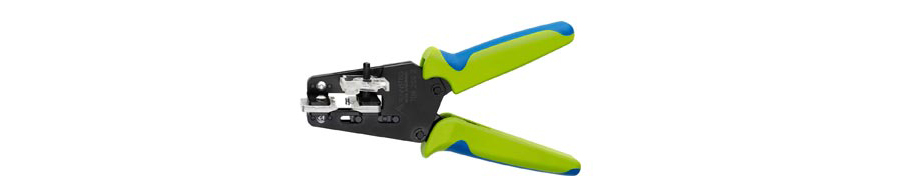

Insulation stripper for special applications

Cable Stripping Tools
Insulation stripper for special applications

Products
  • Special hand tool with length stop for high-quality stripping and dismantling of single and multi-wire cables ranging from 0.03 to 16 mm²
  • Applicable for a great variety of insulation of differing hardness
  • No pinching or deforming of cable ends, thanks to a special cutting mode
  • blades for different wire ranges
  • Customized blade designs on request
  • Automatic release after operation

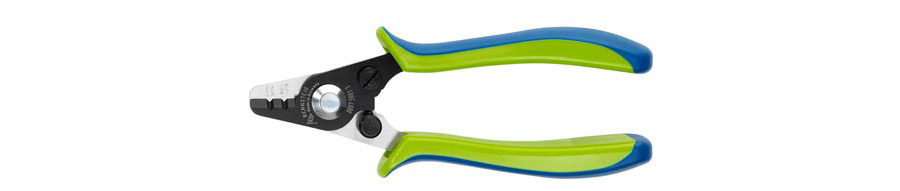

Micro-strip for PTFE insulated cables

Cable Stripping Tools
Micro-strip for PTFE insulated cables

Products
  • For stripping fine-strand PTFE-insulated copper wire with conductor cross-sections from 0.005 – 0.14mm² (AWG 40-26)
  • Fixed stop for cross-sections ranges 0.02/0.01 mm² and 0.008/0.005 mm² (AWG 34/36 and 38/40)
  • Swivel stop for cross-sections ranges 0.14/0.08 mm² and 0.06/0.03 mm² (AWG 26/28 and 30/32)

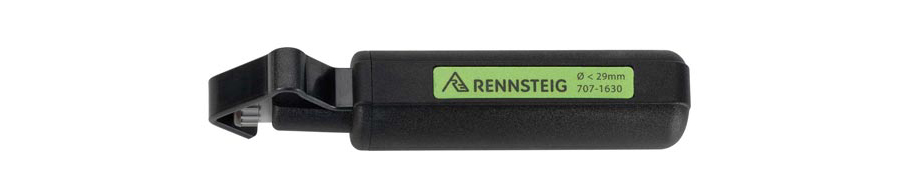

Dismantling Tool

Cable Stripping Tools
Dismantling Tool

Products
  • For dismantling round cable sheaths made of PVC, rubber, silicone or PTFE from 6.0 - 29.0 mm dia.
  • Self-tightening holding lever
  • With knurled nut for cutting depth adjustment
  • Changing from circular to longitudinal cutting by turning the tool body
  • Spiral cutting for removing intermediate pieces
  • Replaceable blade
  • Housing: plastic, impact-proof

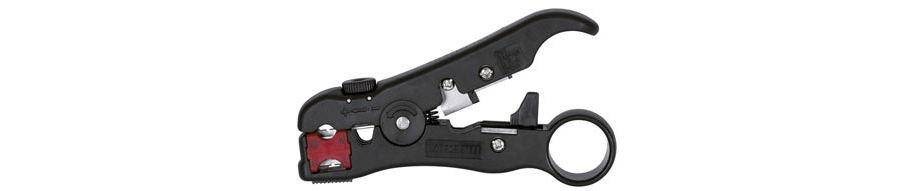

Dismantling Tool Multi

Cable Stripping Tools
Dismantling Tool Multi

Products
  • Universal stripping tool for Coax cables RG 59, RG 6, RG 7, RG 11
  • Strips outer coating of coaxial, UTP/STP, round and flat cables
  • Includes interchangeable / reversible blade magazine 6mm (1/4”)
  • Adjustable stripping blade for data cables
  • Two stripping blades for cutting and stripping flat telephone cables (4P/6P/8P) in one single operation
  • Integrated blade for cutting data cables
  • Uses black Velcro brush for folding back the braided shielding
  • Housing: plastic, impact-resists
