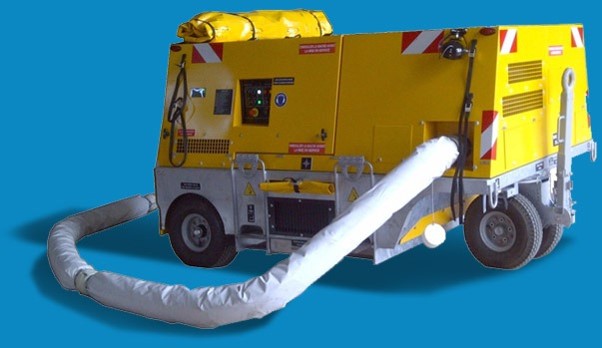

Diesel - Electric Mobile Air Conditioning Units for Military Aircraft
CF33

Specification

Nominal air flow rate: 18 kg/min 550 mb
Cold air outlet temperature: 10°C
Outlet air temperature anti-condensation mode: = +28°C
Power supply: 50/60Hz-400V-3 phases - 125 A Dimensions: 2800 х 2130 х 1600 mm
Weight: 2905 kg
EMC: MIL STD 461 50Vm
Airlift (Fwd/Low/High): 9g/4.5g/2g

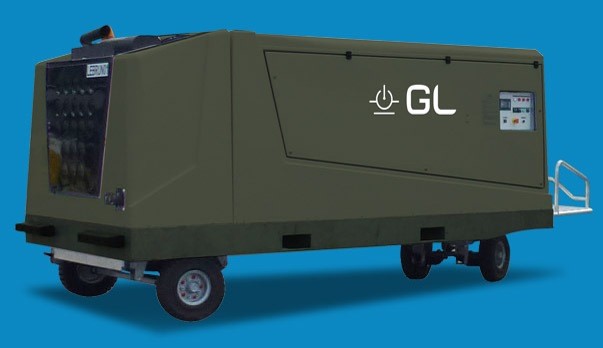

Diesel - Electric Mobile Air Conditioning Units
GF/CF 15

Specification

Nominal air flow rate: 1.5 kg/s
Cold air outlet temperature: -5/+5°C
Hot air outlet temperature (option): = +65°C
Diesel engine: Deutz
Dimensions: 5000 x 2220 x 2223 mm
Weight: 4500 kg

Diesel - Electric Mobile Air Conditioning Units
GF/CF 35

Specification

Nominal air flow rate: 3.5 kg/s
Cold air outlet temperature: -5/+5°C
Hot air outlet temperature (option): = +65°C
Diesel engine: Deutz / alternative électrique
Dimensions: 6290 x 2530 x 2820 mm
Weight: 8500 kg

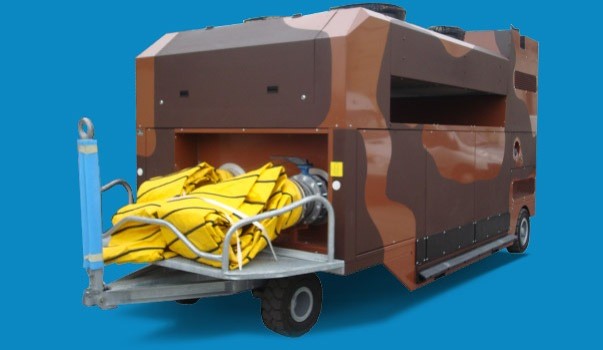

Diesel - Electric Mobile Air Conditioning Units
GF/CF 50

Specification

Nominal air flow rate: 5.0 kg/s
Cold air outlet temperature: -5/+5°C
Hot air outlet temperature (option): = +65°C
Diesel engine: Deutz / electric alternative
Dimensions: 6295 x 2660 x 3000 mm
Weight: 10100 kg
