ProductIntercable Tools
Battery Operated Hydraulic Crimping Tool

Battery Operated Hydraulic Crimping Tool

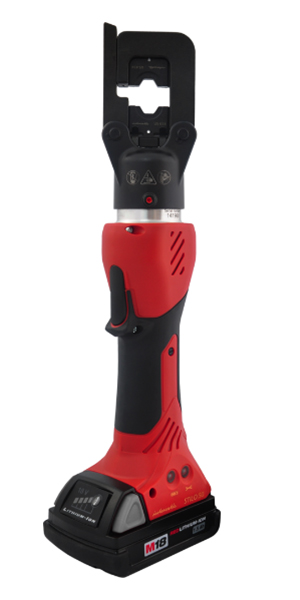

STILO50 - Battery Operated Hydraulic Crimping Tool up to 50kN

Technical Characteristics

• Cordless Crimping Tool 18V Li-ion, 1.5ah
• Ergonomically Shaped 2-component Handle For Optimal One-hand Operation
• Foldable Crimping Head Can Be Rotated By 340°
• Quick Tool Returns Thanks To The Patented Return Valve
• Light, Compact And Robust Design
• Fast Feed Thanks To The Triple Axial Piston Pump
• Manual Rewind Possible In Any Position
• Electronic Control And Monitoring Of The Pressing Process
• Evaluation Of The Pressing Cycles And Error Log Directly Via USB Interface
• Safety Hand Strap Regarding Fall Protection For Overhead Work
• 3-color LED Displays For Battery, Malfunction And Due Date - Service Display On The Device, 1 Service After 20,000 Cycles
• Powerful Battery, Approx. 250 Pressings For Cu 150mm²
• Charging Time: 30min

STILO50- Battery Operated Hydraulic Crimping Tool up to 50kN - Intercable Tools

Battery Operated Hydraulic Crimping Tool

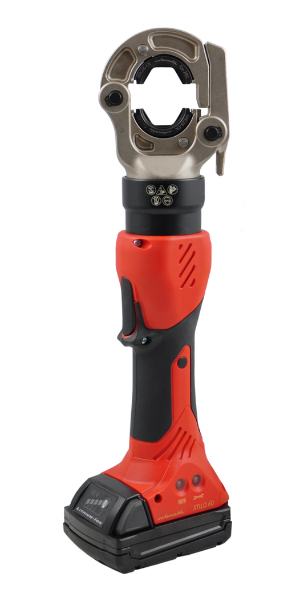

STILO60 - Battery Operated Hydraulic Crimping Tool up to 60kN

Technical Characteristics

• Suitable For Pressing Aluminum Cables And Copper Cables Up To 300mm²
• Lightweight
• Compact And Robust Design
• Ergonomic Design For Left-handers Or Right-handers
• Extremely Fast Work Thanks To Triple Axial Piston Pump
• Automatic Pressure Limiting And Monitoring By Means Of Pressure Sensor
• Soft Start And Quick Stop Increase The Service Life
• Engine Shutdown And Automatic Return After Completion Of Pressing
• Electronic Control And Monitoring Of The Pressing Process
• Manual Return Possible In Any Position
• Automatic Power Saving Mode After Approx. 5 Minutes
• Multifunctional Electronics With Sleep Mode
• Service Indicator And Service Control
• Intelligent Electronic Module With 2 Multifunction Leds (3-color LED)
• Storage Of All Working Cycles And Error Messages On Internal Memory (Approx. 100,000 Cycles)
• Reading Out Of All Cycles And Error Messages Via USB
• Controlled Motor Control For Increased Service Life Of Gearbox
• Motor And Battery

STILO60 - Battery Operated Hydraulic Crimping Tool up to 60kN - Intercable Tools

Battery Operated Hydraulic Crimping Tool

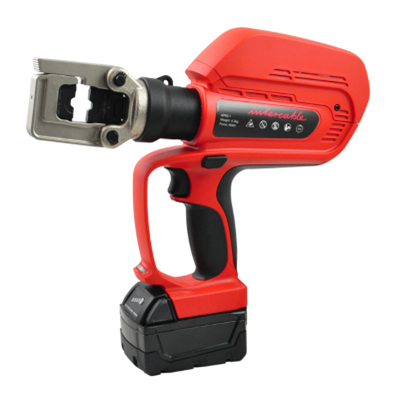

AP60-1 Battery Operated Hydraulic Crimping Tool up to 60kN

Technical Characteristics

• 3 years of warranty or 20.000 work cycles
• Light and compact structure
• Crimping head with snap closure, rotates 360°
• High speed feed with double hydraulic cylinder
• Pressure release button with single handed operation (on both sides, for left- and right handed operators)
• Fastening ring for shoulder strap
• Ergonomic grip for weight balance to ensure an easy and safe operation
• Plastic housing, grip and pressure release button, insulating and shock resistant
• Powerful LED for working space illumination
• Tool dimensions: 329 x 331 x 75 mm
• Tool weight: 4,3 kg
• Cross section (min) (mm²) – 6
• Cross section (max) (mm²) – 240
• Length (mm) – 331
• Net weight single item (kg) - 7.9

AP60-1- Battery Operated Hydraulic Crimping Tool up to 60kN - Intercable Tools

Battery Operated Hydraulic Crimping Tool

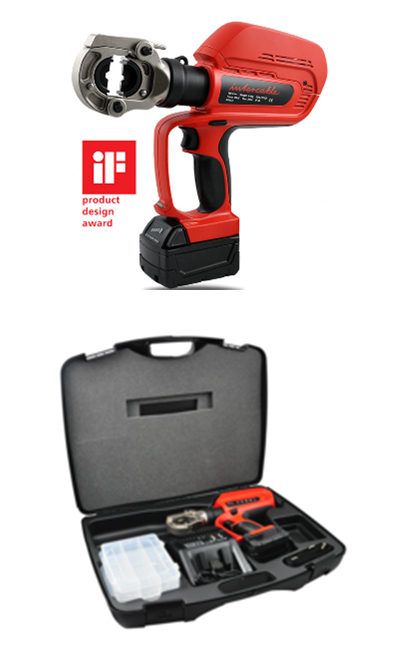

AP60-2 Battery Operated Hydraulic Crimping Tool up to 60kN

Technical Characteristics

• 3 years of warranty or 20.000 work cycles
• Light and compact structure
• Crimping head with snap closure, rotates 360°
• High speed feed with double hydraulic cylinder
• Pressure release button with single handed operation (on both sides, for left- and right handed operators)
• Fastening ring for shoulder strap
• Ergonomic grip for weight balance to ensure an easy and safe operation
• Plastic housing, grip and pressure release button, insulating and shock resistant
• Powerful LED for working space illumination
• Tool dimensions: 331 x 334 x 75 mm
• Tool weight: 4,4 kg
• Cross section (min) (mm²) – 6
• Cross section (max) (mm²) – 300
• Length (mm) – 334
• Net weight single item (kg) - 8.518

AP60-2- Battery Operated Hydraulic Crimping Tool up to 60kN - Intercable Tools

Battery Operated Hydraulic Crimping Tool

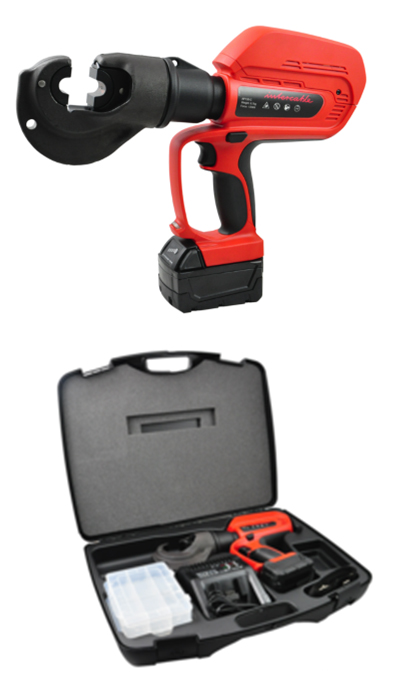

AP130-C - Battery Operated Hydraulic Crimping Tool up to 130kN

Technical Characteristics

• 3 years of warranty or 20.000 work cycles
• Light and compact structure
• C-shaped crimping head, rotates 360°
• High speed feed with double hydraulic cylinder
• Pressure release button with single handed operation (on both sides, for left- and right handed operators)
• Fastening ring for shoulder strap
• Ergonomic grip for weight balance to ensure an easy and safe operation
• Plastic housing, grip and pressure release button, insulating and shock resistant
• Powerful LED for working space illumination
• Tool dimensions: 331 x 401 x 79 mm
• Tool weight: 6,7 kg
• Cross section (min) (mm²) – 10
• Cross section (max) (mm²) – 400
• Length (mm) – 417
• Net weight single item (kg) - 10.5

AP130-C - Battery Operated Hydraulic Crimping Tool up to 130kN - Intercable Tools

Battery Operated Hydraulic Crimping Tool

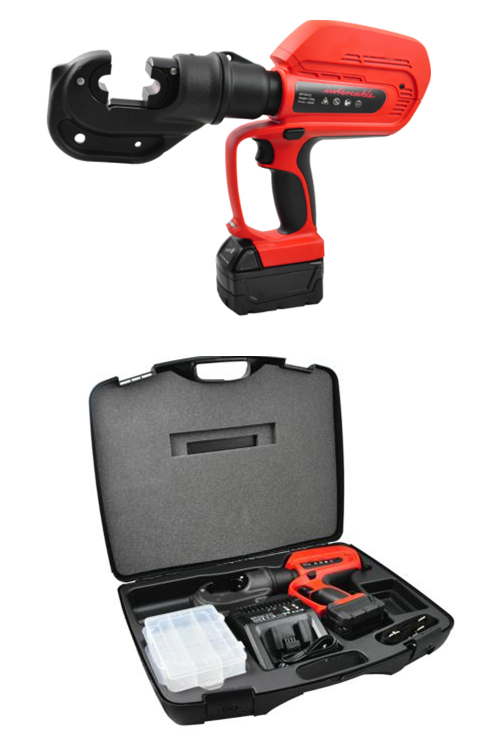

AP130-C2 - Battery Operated Hydraulic Crimping Tool up to 130kN

Technical Characteristics

• 3 years of warranty or 20.000 work cycles
• Light and compact structure
• C-shaped crimping head, rotates 360°
• High speed feed with double hydraulic cylinder
• Pressure release button with single handed operation (on both sides, for left- and right handed operators)
• Fastening ring for shoulder strap
• Ergonomic grip for weight balance to ensure an easy and safe operation
• Plastic housing, grip and pressure release button, insulating and shock resistant
• Powerful LED for working space illumination
• Tool dimensions: 331 x 417 x 79 mm
• Tool weight: 6,8 kg

AP130-C2 - Battery Operated Hydraulic Crimping Tool up to 130kN - Intercable Tools

Battery Operated Hydraulic Crimping Tool

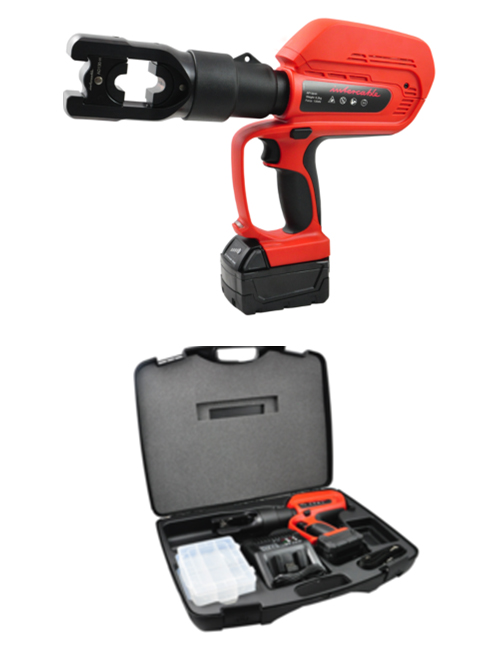

AP130-H - Battery Operated Hydraulic Crimping Tool up to 130kN

Technical Characteristics

• 3 years of warranty or 20.000 work cycles
• Light and compact structure
• Crimping head rotates 360°
• High speed feed with double hydraulic cylinder
• Pressure release button with single handed operation (on both sides, for left- and righthanded operators)
• Fastening ring for shoulder strap
• Ergonomic grip for weight balance to ensure an easy and safe operation
• Plastic housing, grip and pressure release button, insulating and shock resistant
• Powerful LED for working space illumination
• Tool dimensions: 331 x 409 x 75 mm
• Tool weight: 6,2 kg
• Cross section (min) (mm²) – 10
• Cross section (max) (mm²) – 400
• Length (mm) – 409
• Net weight single item (kg) – 10

AP130-H - Battery Operated Hydraulic Crimping Tool up to 130kN - Intercable Tools

Battery Operated Hydraulic Crimping Tool

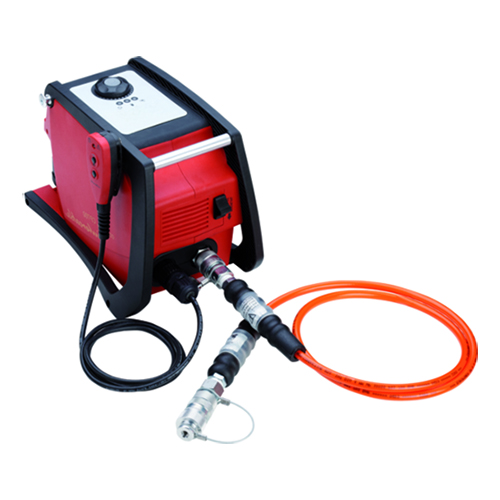

CP700EC - Compact Hydraulic Pump with Battery operated

Designed to operate hydraulic tools up to 700bar (70MPa).

Technical Characteristics

• Light, compact and robust structure
• Ergonomic design for right or left handers
• Optional transportation bag with pockets, with a shoulder strap or attached to a belt (optional)
• Manual or automatic return
• Rapid return of piston due to high return capacity
• Preinstalled standard programs for cutting and crimping
• Electronic sensor pressure control
• High performance lithium ion battery
• Charge indicator on the battery
• Double piston technology for rapid high pressure feed
• Flow range at low pressures < 100 bar: 1.2 lit./min.
• Flow range at pressures up to 700 bar: 0.2 lit./min.
• Operating pressure: : 700 bar (70 MPa)
• Power: 200 W
• Battery voltage: 18,0 V DC
• Battery capacity: 3,0 Ah
• Range of use: 20°C / +55°C (integrated cooling system)
• Remote control (1.5 m) two buttons and LED indicator
• Possibility to attach the remote control to the unit with the integrated magnet
• A belt or shoulder strap can be added through a clamp support
• Error indication
• Possibility of reading all the cycles and error indications by USB
• Including software
• Tool dimensions: 290 x 190 x 205 mm
• Tool weight: 4,5 kg
• Nominal pressure (bar) – 700
• Net weight single item (kg) - 4.6

CP700EC - Compact Hydraulic Pump with Battery - Intercable Tools
