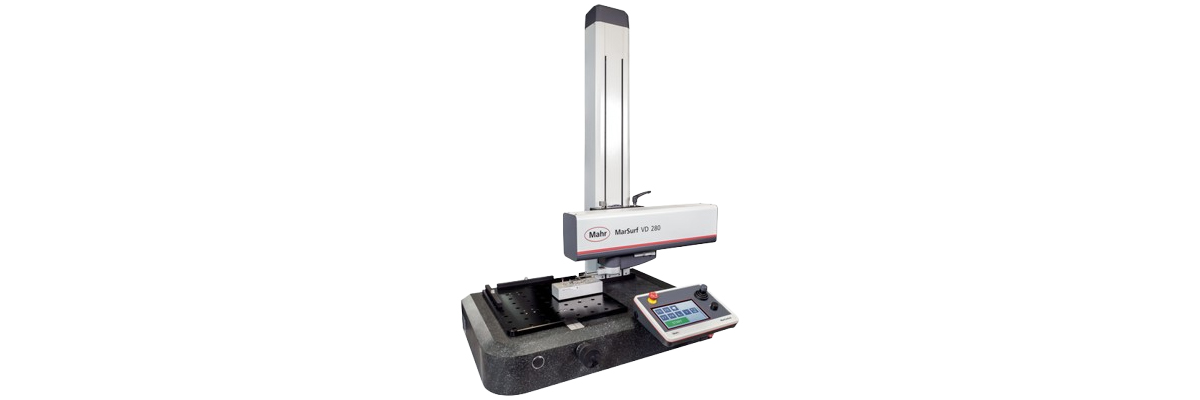

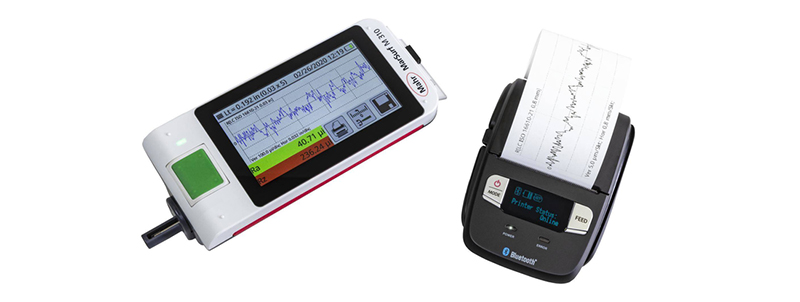

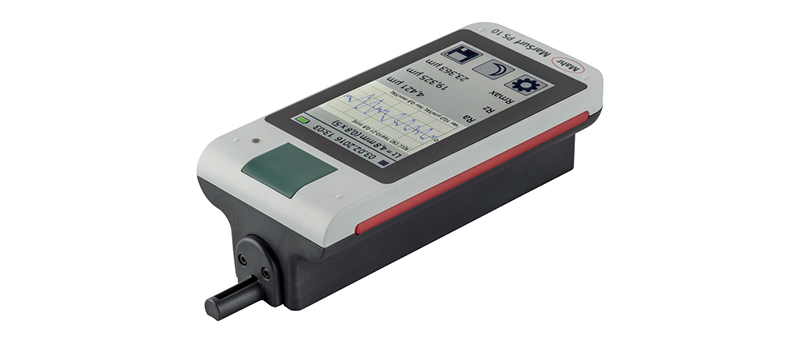

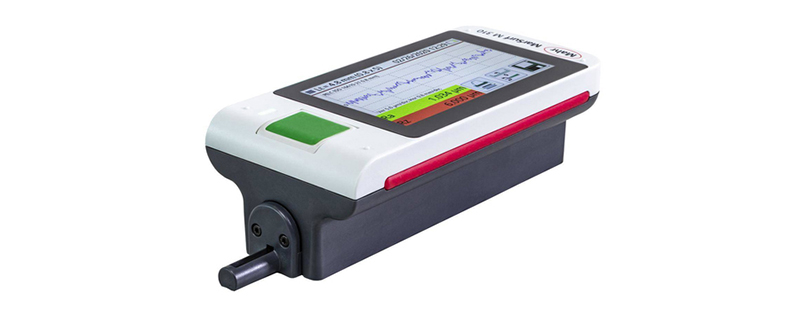

Surface Roughness Tester

Fast measuring and retooling:

Short measuring times thanks to high positioning and measuring speeds

• Manual quick adjustment of the drive unit in the Z-axis with fine adjustment for optimum alignment
• Quick, tool-free change of the probe arm thanks to magnetic suspension – without recalibration
• Tracing force selection prevents incorrect measurements

Flexible and versatile in use:

Workpiece mounting plate offers sufficient space even for large workpieces

• Large measuring range of 70 mm for versatile applications
• Maximum handling flexibility thanks to mounting plate with 50 mm bore size
• Wide selection of probe arms and accessories.

Extensive software package:

Measurement of double contours, e.g. for determining diameters

• Optional roughness measurement from Rz 2 μm possible
• Simple and intuitive contour measurement and evaluation
• Start Quick & Easy programs by reading in DMC codes

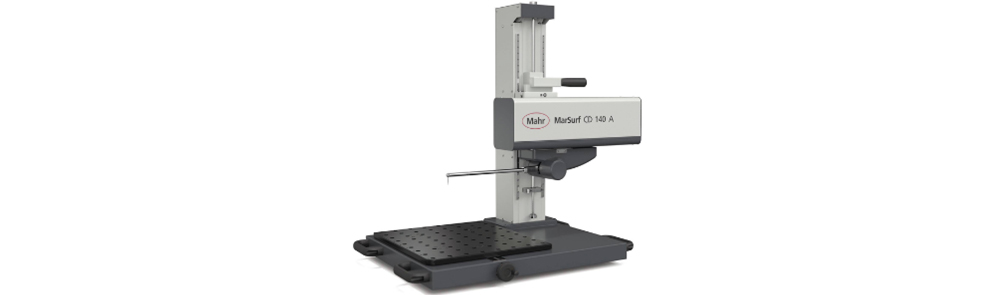

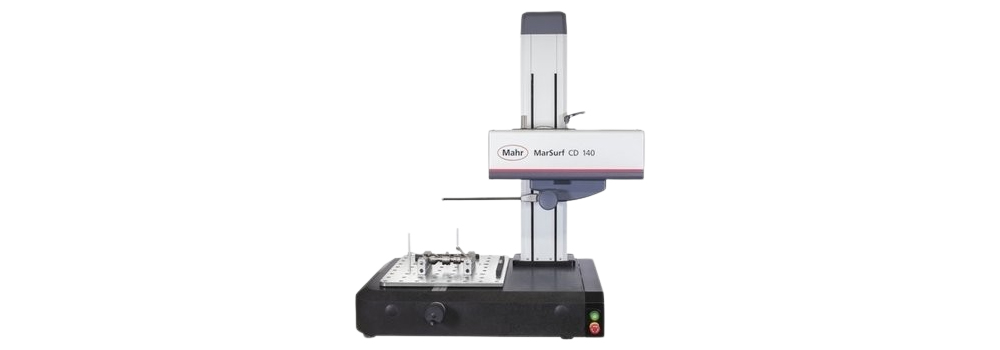

6269203 – MarSurf CD 140 AG – MarSurf Contour measuring station

High speed of all axes speeds up the examination of workpieces.

The new MarSurf CD series from Mahr decisively accelerates contour measurement. The new generation of X- and Z-axes offers a higher speed with maximum precision, making quality assurance of workpieces more efficient. This saves manufacturing companies valuable time and costs.

More speed in measurement – less stress in quality assurance

Does this sound familiar? Time pressure, new workpieces and tight time frames: Quality assurance of workpieces is indispensable, often causes stress and leaves one question unanswered: Can the tempo at the measuring stations be increased? Yes! This is exactly what the new contour measuring stations MarSurf CD 140 and MarSurf CD 280 do.

Positioning speeds up to 200 mm/s

The measuring stations of the MarSurf CD series unite precise and reliable quality control with productive working.

• The X-axis contour probe moves with positioning speeds of up to 200 mm/s – 25 times faster than with previous models.
• The efficiency is additionally supported by the high speed of the X-axis, which is 50 mm/s

6269004 – MarSurf CD 280 – MarSurf Contour measuring station

The professional all-rounder for roughness and contour with 280 mm measuring path

The new MarSurf range CD, GD and VD is a precision product offering the highest speed and flexibility.

An improved floor to floor time of up to 65 % provides convincing proof of the speed. The flexibility is highlighted by the large measuring range, the workpiece flexibility (even up to 80 kg) and simple clamping system. It also supports the repeatability and therefore also accuracy.A particular feature of the MarSurf VD is the highly accurate contour and roughness measurement using one system. Simply replace the  roughness measuring system and complete highly accurate roughness measurements.

One basis, many advantages

• All machines in the MarSurf range run on a common platform.Short measuring times thanks to high axis speeds and automated measuring sequences
• Simple, fast mounting, and changeover thanks to innovative clamping system
• Magnetic mount for changing the probe arm quickly without the need for tools
• Spacious support plate and large measuring range: ideal for measuring large workpieces

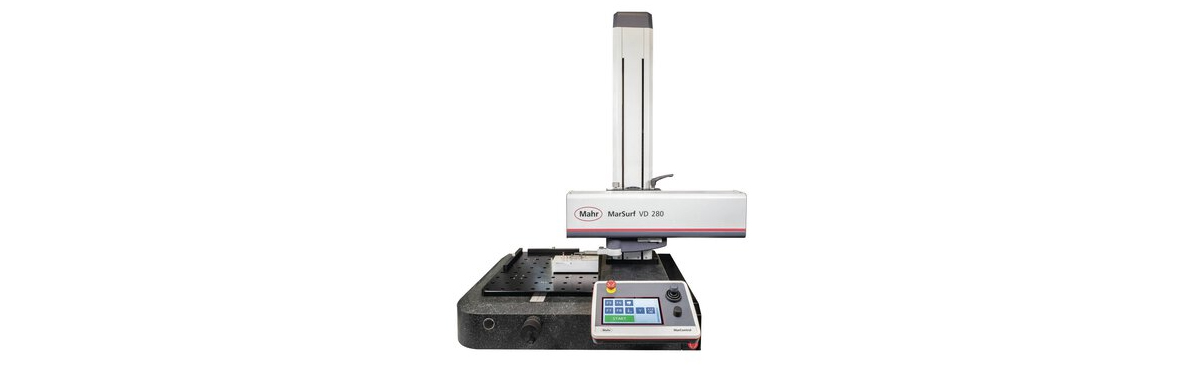

6269022 – MarSurf VD 280 – MarSurf Roughness and contour measuring station

Flexible solution for fully automatic measurement of rotationally symmetrical workpieces

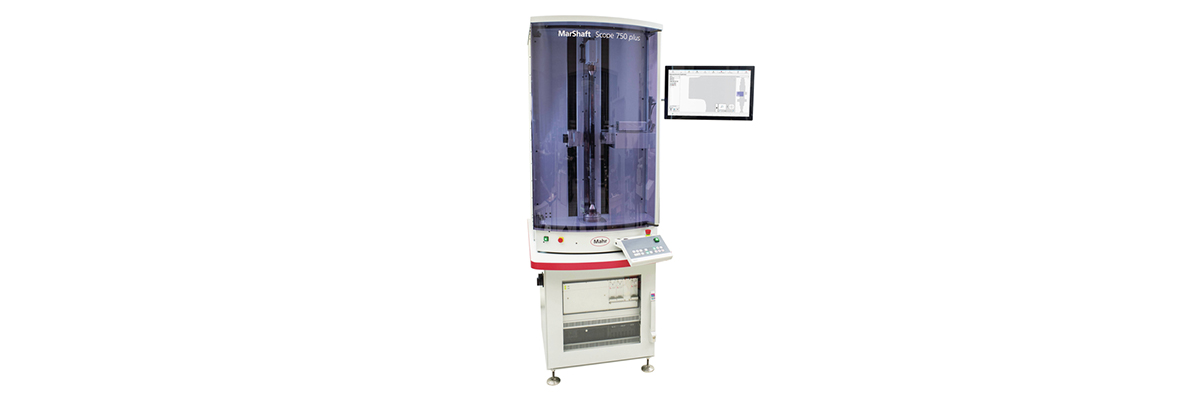

The MarShaft SCOPE plus can be used for optical and tactile measurements directly in the harsh manufacturing environment. In addition to the standard complete measurement of rotationally symmetrical workpieces, highly accurate form measurements can, for example, also be completed and features that were previously reserved for a standard form tester are now covered.

The MarShaft SCOPE plus series offers universal, fully automatic optical shaft measuring systems for measuring rotationally symmetrical workpieces up to a diameter of 120 mm and lengths of 350 or 750 mm

All units have ahigh-precision roundness measuring axis (C) sowie vertical (Z) and horizontal (X) measuring axes.

As a supplement to the built-in CMOS matrix camera is an optional tactile measuring unit with inductive 2D measuring probe and additional measuring axis (Y) in order to measure e.g. radial and axial runout. The measuring device is calibrated to the optical measuring system, making it possible to combine tactile and optical measuring tasks.

5361508 - MarShaft SCOPE 750 plus - MarShaft Optical-tactile shaft measuring devices
