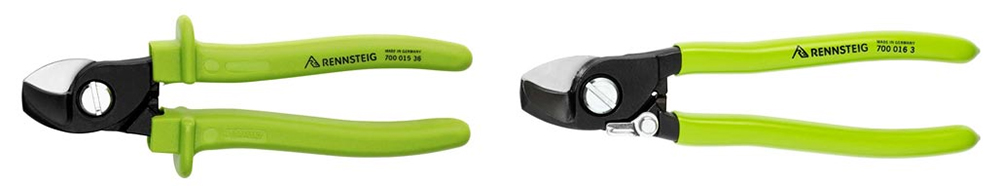

Cable Shears D15

Cable Cutting Tools
Cable Shears D15

For cutting single-strand, multi-strand and fine-wire aluminum and copper cables
Easy, clean cut with one-hand operation
No crushing or deformation of cables
Not for steel wire, wire cable or hard-drawn copper cable
Forged construction with choice of finishes and grips

Art. No	Finish	Grips	Cutting Capacity			Length mm	Weight g
Art. No	Finish	Grips				Length mm	Weight g
D15 without opening spring (Max cable dia. 15 mm)
7000153	burnished	Plastic Coated	Cu 16	Cu 50	Cu 70	170	210
700 015 36	burnished	reinforced plastic grips	Cu 16	Cu 50	Cu 70	170	240
D15 with opening spring (Max cable dia. 15)
700 016 3	burnished	Plastic Coated	Cu 16	Cu 50	Cu 70	170	210
700 015 36	burnished	reinforced plastic grips	Cu 16	Cu 50	Cu 70	170	240

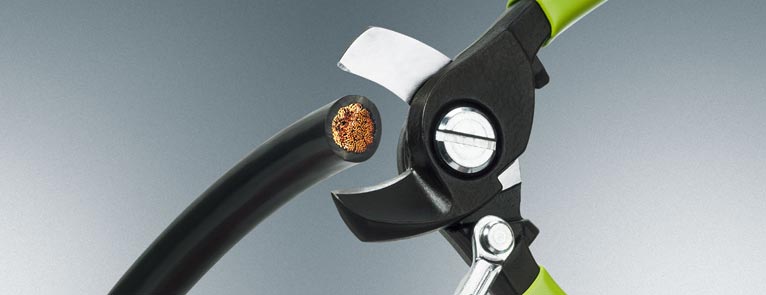

Left: Cutting a cable with a conventional wire cutter. High force is required, and the cable is squeezed and deformed. Right: Cutting a cable with a cable cutter. Easier and cleaner cut without deformation

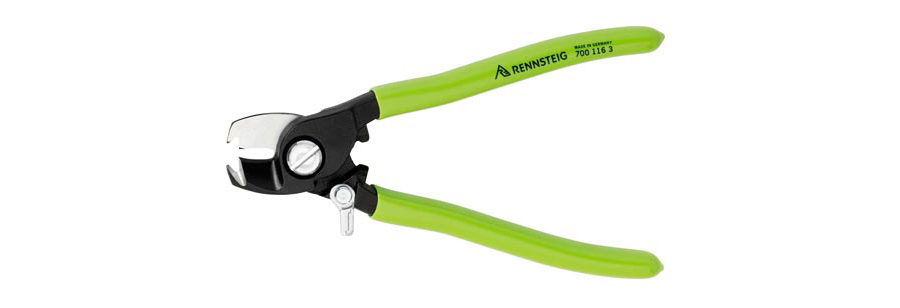

Cable Shears D15s

Cable Cutting Tools
Cable Shears D15s

Multi-functional tool for cutting and stripping NYM/NM-B wire (3x1.5mm² to 5x2.5mm²)
clean and smooth cut without consting or deformation
universal stripping position for both sizes
secure positioning of the cable in the stripping area due to the V-shaped cutting geometry
compact and handy design
opening spring allows quick and comfortable operation
improved work safety through lock

Art. No	Finish	Grips	Cutting Capacity			Length mm	Weight g
Art. No	Finish	Grips				Length mm	Weight g
D15s with opening spring (Max cable dia. 12 mm)
700 116 3	burnished	Plastic Coated	Cu 16	Cu 25	Cu 35	170	210

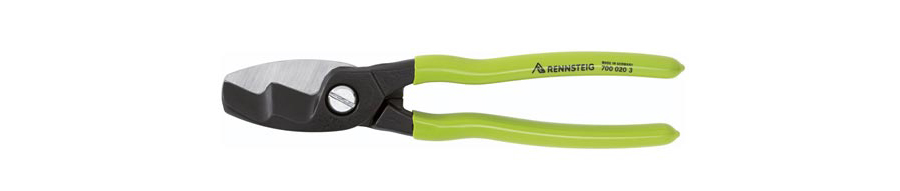

Cable Shears D20

Cable Cutting Tools
Cable Shears D20

For cutting single-strand, multi-strand and fine-wire aluminum and copper cables
Easy, clean cut with one-hand operation
No crushing or deformation of cables
Not for steel wire, wire cable or hard-drawn copper cable
Forged construction with choice of finishes and grips
Double blade for precut and finishing cut

Art. No	Finish	Grips	Cutting Capacity			Length mm	Weight g
Art. No	Finish	Grips				Length mm	Weight g
D20 (Max cable dia. 20 mm)
700 020 3	burnished	Plastic Coated	Cu 16	Cu 70	Cu 95	200	300
700 020 36	burnished	reinforced plastic grip	Cu 16	Cu 70	Cu 95	200	340

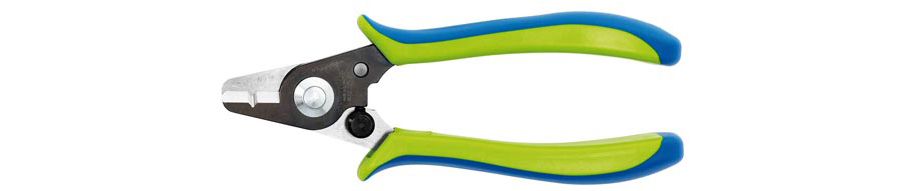

Miniature wire cutter and strand trimming tool

Cable Cutting Tools
Miniature wire cutter and strand trimming tool

Cutting tool (miniature) for wire sizes from AWG 26 to 16, according to the aerospace standard AS6173/1
For cutting aircraft wiring such as AS22759 with tin, nickel, and silver coated conductors of copper, and high strength and ultra high strength copper alloy
Can reach “tight” aircraft repair locations

Art. No	Capacity		Length mm	Weight g
Art. No	mm²	AWG	Length mm	Weight g
8000 1001 3	0,14 – 1,5	26 – 16	135	75

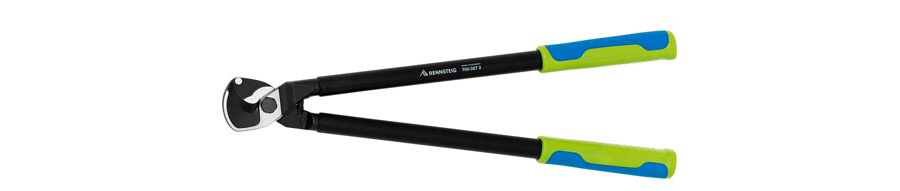

Cable Shears D27

Cable Cutting Tools
Cable Shears D27

For cutting single-strand, multi-strand and fine-wire aluminum and copper cables
Easy, clean cut due to new blade geometry
Short design, low weight
Not for steel wire or wire cable

Art. No	Head	Handles	Cutting Capacity			Length mm	Weight g
Art. No	Head	Handles				Length mm	Weight g
D27 (Max cable dia. 27 mm)
700 027 2	burnished, bright ground blades	powder-coated with two-component grips	Cu 150	Cu 185	Cu 140	500	1010

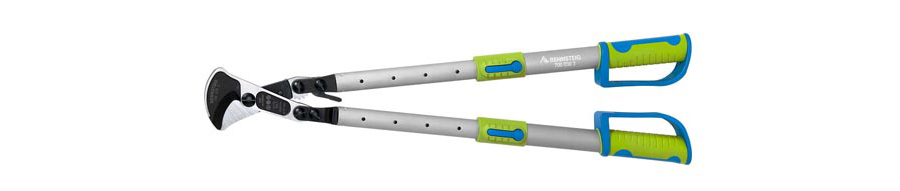

Cable Shears D38

Cable Cutting Tools
Cable Shears D38

For cutting single-strand, multi-strand and fine-wire aluminum and copper cables
Easy, clean cut due to new blade geometry
Ideal for cramped working spaces
Jointed telescope arms adjust for the ideal grip width
Ratchet action and low weight for easy working
Not for steel wire or wire cable
Replaceable cutting head

Art. No	Head	Handles	Cutting Capacity			Length mm	Weight g
Art. No	Head	Handles				Length mm	Weight g
D38 (Max cable dia. 38 mm)
700 038 3	burnished,bright ground blades	telescope arms of anodized aluminum tubing with two-component grips	Cu 300	Cu 300	Cu 280	570 - 770	2000
700 038 3 0	replacement cutting head

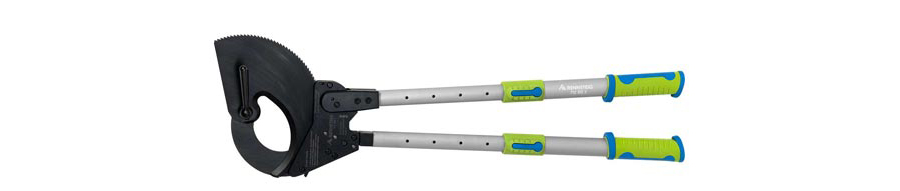

Cable cutters D60 and D100

Cable Cutting Tools
Cable cutters D60 and D100

For cutting single-strand, multi-strand and fine-wire aluminum and copper cables
Also for lead-coated cables
Ratchet action for high cutting performance
Telescope arms adjust to a range of lengths
Cutter can be opened in any cutting position
Can be used in cramped situations as well as overhead
Not for steel wire or wire cable

Art. No	Head	Handles	Cutting Capacity			Length mm	Weight g
Art. No	Head	Handles				Length mm	Weight g
D60 (Max cable dia. 60 mm)
712 060 3	burnished,bright ground blades	telescope arms of anodized aluminum tubing with two-component grips	Cu 630	Cu 300	Cu 740	610 - 810	3850
712 061 3	spare blades
D100 (Max cable dia. 100 mm)
712 100 3	burnished,bright ground blades	telescope arms of anodized aluminum tubing with two-component grips	Cu 800	Cu 1000	Cu 960	660 - 860	4980
712 101 3	spare blades
