ProductBrady
PermaSleeve Heat Shrink Wire and Cable Labels

• Wire identification and insulation purposes
• RECOMMENDEDRIBBONS Brady Series R6600 for thermal transfer printing best smear and chemical resistance
• Brady Series R4300 for thermal transfer printing general purpose ribbon
• Brady Series R4502S for thermal transfer printing silver on dark colored markers
• Brady Series R6700 for thermal transfer printing white on dark colored markers REGULATORY/AGENCY APPROVALS
• UL: B- 342 is a UL Recognized Component to UL224 Extruded Insulated Tubing. See UL file E333786 for specific details.
• SPECIAL FEATURES B- 342 Perma Sleeve TM Markers are made from heat shrinkable tubing that is qualified to SAE AS23053/5 (Class 4). See the QPL listing for Brady Corporation product part numbers
• PS-C-*. B-342 Perma Sleeve TM Markers meet the mark permanence requirements of AS -81531 and AS-5942 when printed with the Brady Series R6600, R4300, R4502S, R6700 series thermal transfer ribbons, R5000 Series dot matrix ribbon, and with laser marking.” The operating temperature range is -55°C ( -67°F) to +135°C (+275°F). A minimum recovery temperature of 150°C (302°F) is recommended for B-342 Perma Sleeve® markers.
• B- 342 is available in white, yellow, black, red, orange, green, blue, violet, pink, gray, and brown. B-342 can also be printed using laser marking method. Laser marking has very good environmental, abrasion, and chemical resistance

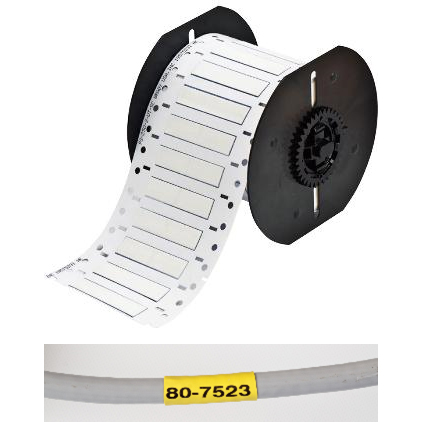

Brady Part: B33-250-2-342-2 | 142945 | PermaSleeve Heat Shrink Wire and Cable Labels, Single-sided, for B33 Printers - 0.25" Dia x 1", White | BradyID.com

Features

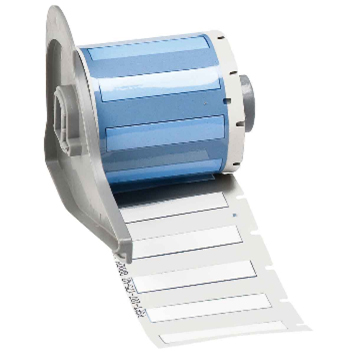

• The B-344 PermaSleeve material is suitable for use in applications that require greater resistance to harsh chemicals such as fuel and high power cleaning solvents.
• Ideal for use in the aerospace industry, specifically in planes powered by hydrogen fuel cells
• Brady Authentic materials work seamlessly with Brady printers for improved printer and material communication, seamless mobile app interaction, and better performance and reliability
• A ribbon is required to print this material. The recommended ribbon will show here once a part is chosen

PermaSleeve Fluid Resistant Heat Shrink Wire and Cable Labels for M6 M7 Printers | Brady | BradyID.com

Features

• High temperature, low outgassing. 2:1 Shrink ratio.
• A 2:1 shrink ratio wire marker sleeve specifically designed for high temperature and low vacuum outgassing applications
• Fade-resistant and flame-retardant
• Meets the following industry specifications: - NASA SP-R-0022A Outgassing Performance - Tested per ASTM E162, ASTM E662, SAE-AMS-DTL-23053/18 (class 2) - MIL-STD-202 - SAE-AS-81531 Service temp: -67°F to 437°F Agency Approvals for HT and HX Sleeves: ROHS
• Print Technology: Thermal Transfer
• Material Type: Irradiated polyvinylidene fluoride heat shrink tubing Finish: Matte
• Shrink Ratio: 2:1 (3/32” is 3:1)

Application

B-345 PermaSleeve® Markers are designed for wire identification and insulation purposes. B-345 sleeves are suitable for numerous high temperature and/or low outgassing applications. B-345 sleeves are also recommended for applications that require greater resistance to harsh chemicals such as fuels, lubricants, and high power cleaning solvents

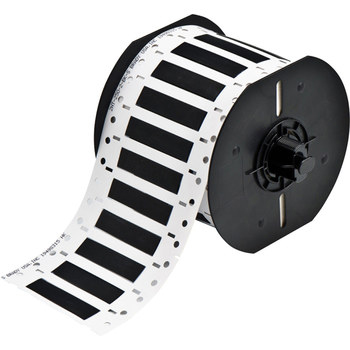

Brady Part: B33D-1500-2-345BK | 142974 | PermaSleeve High Temperature Heat Shrink Labels, 1-1/2" Dia, for B33 Printers - 2", Black | BradyID.com

Features

• The B-7641 Heat Shrink Sleeve from Brady® is a low smoke, halogen free identification material used for wire and cable identification.
• Made of halogen-free, flexible flame-retardant, heat-shrinkable polyolefin tubing, offering fire safety properties and minimal smoke emission
• Compatible with the most stringent requirements in the market today to enhance fire safety needs
• 2:1 heat-shrink ratio
• Use with thermal transfer printers and Brady's R6000 series halogen-free ribbon
• A ribbon is required to print this material. Use Part Number B30-R6000
• Low halogen wire marking sleeves offer outstanding fire safety properties and minimal smoke emission
• Meets the following industry specifications: - SAE-AS-81531 - MIL-STD-202 - Tested per ASTM E162, ASTM E662 Service temp: -22°F to 221°F

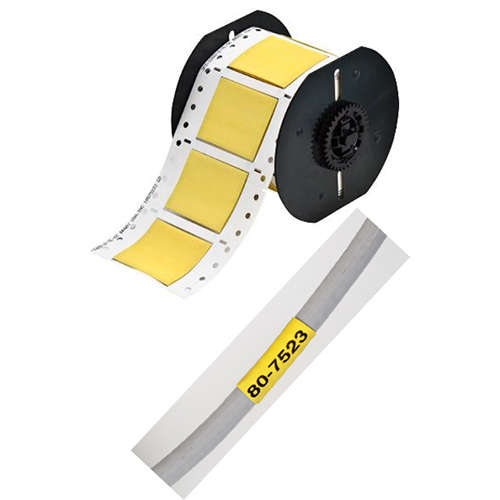

Brady Part: B33D-1000-2-7641Y | 140926 | PermaSleeve Low Smoke Zero Halogen Heat Shrink Labels, 1" Dia, for B33 Printers - 2", Yellow | BradyID.com
