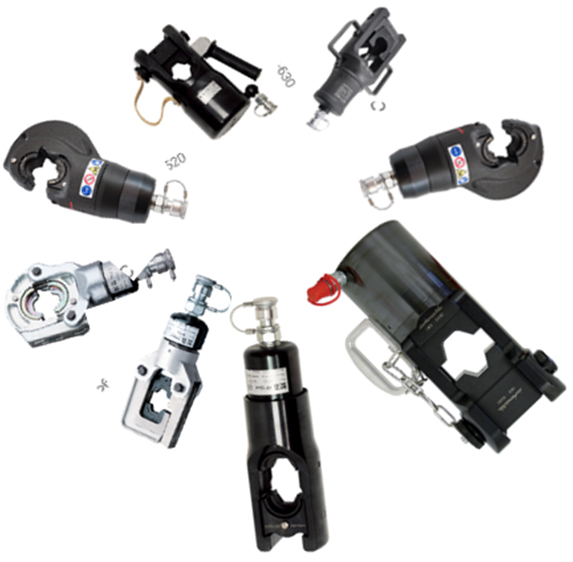

Crimping Heads

Crimping Heads

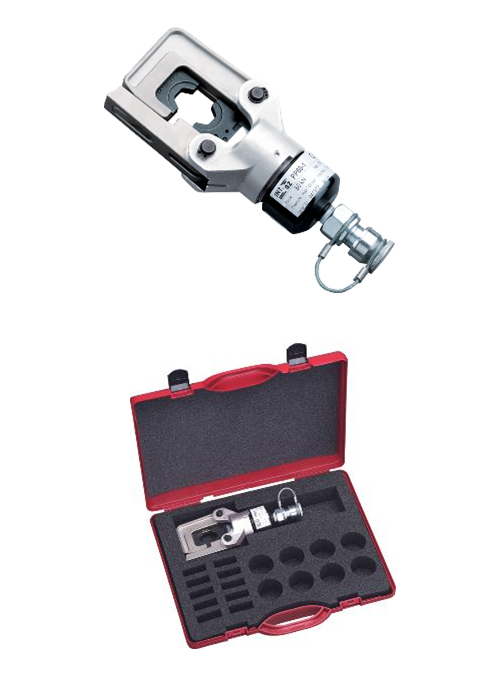

Hydraulic Crimping Head PP60-1

Features

• The unit must be operated through 700 bar hydraulic pump to reach crimping force of 60 Kn
• Cross section: 6 - 240 mm2
• Crimping force: 60 kN
• Max. stroke: 17 mm
• Operating pressure: 700 bar
• The unit must be operated through 700 bar hydraulic pump to reach crimping force of 60 kN

Technical Characteristics

• Sturdy and compact structure
• Openable head to make it easy to position and insert the crimping dies
• Quick male connector with automatic lock system and dust cap
• Tool dimensions: 74 x 198 x 54 mm
• Tool weight: 1,6 kg

PP60-1 - Hydraulic Crimping Head 60kN - Intercable Tools

Crimping Heads

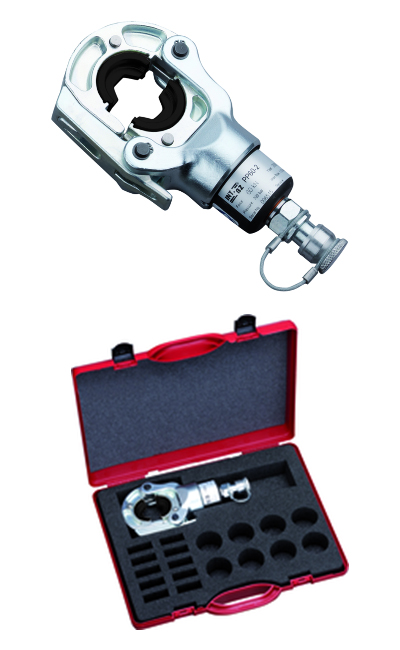

Hydraulic Crimping Head PP60-2

The unit must be operated through 700 bar hydraulic pump to reach crimping force of 60 kN

Technical Characteristics

• Sturdy and compact structure
• Openable head to make it easy to position and insert the crimping dies
• Quick make snap lock connection and non detachable dust cap
• Tool dimensions: 93 x 198 x 93 mm
• Tool weight: 1,7 kg
• Hydraulic crimping head
• Plastic case for crimping head and maximum 18 crimping dies

PP60-2 - Hydraulic Crimping Head 60kN - Intercable Tools

Crimping Heads

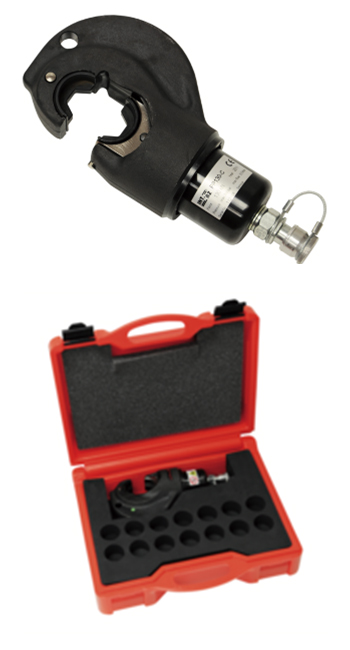

PP130-C - Hydraulic Crimping Head 130 kN

The unit must be operated through 700 bar hydraulic pump to reach crimping force of 130 kN

Technical Characteristics

• Sturdy and compact structure
• C head for easy positioning of dies
• Quick make snap lock connection and non detachable dust cap
• Tool dimensions: 128 x 254 x 78 mm
• Tool weight: 4,1 kg
• Hydraulic crimping head
• Plastic case for crimping head and 14 crimping dies
• Cross section (min) (mm²) – 10
• Cross section (max) (mm²) – 400
• Length (mm) – 254
• Net weight single item (kg) - 5.9

PP130-C - Hydraulic Crimping Head 130 kN - Intercable Tools

Crimping Heads

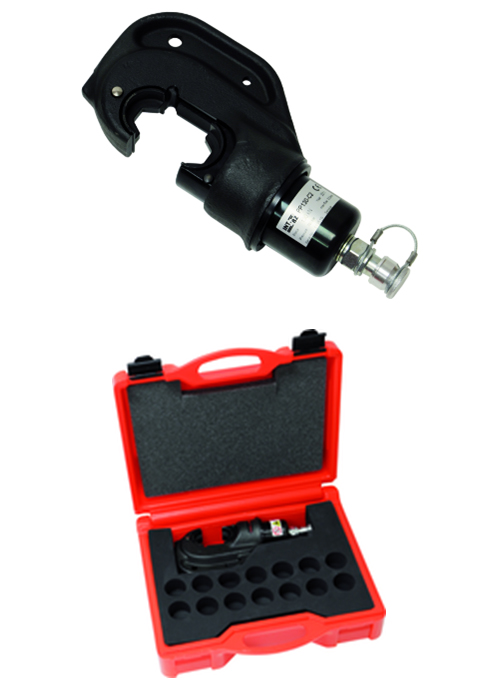

PP130-C2 - Hydraulic Crimping Head 130kN

The unit must be operated through 700 bar hydraulic pump to reach crimping force of 130 kN

Technical Characteristics

• Sturdy and compact structure
• C head for easy positioning of dies
• Quick make snap lock connection and non detachable dust cap
• Tool dimensions: 129 x 271 x 78 mm
• Tool weight: 4,4 kg
• Hydraulic crimping head
• Plastic case for crimping head and 14 crimping dies
• Cross section (min) (mm²) – 10
• Cross section (max) (mm²) – 400
• Length (mm) – 282
• Net weight single item (kg) - 5.9

PP130-C2 - Hydraulic Crimping Head 130kN - Intercable Tools

Crimping Heads

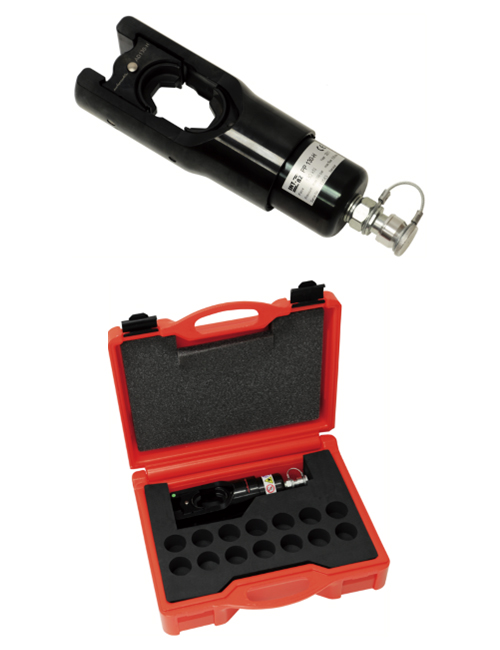

PP130-H - Hydraulic Crimping Head 130kN

The unit must be operated through 700 bar hydraulic pump to reach crimping force of 130 kN

Technical Characteristics

• Sturdy and compact structure
• Openable head to make it easy to position and insert the crimping dies
• Quick make snap lock connection and non detachable dust cap
• Adapters and punch for deep indent crimping
• Head opening: 35 mm
• Tool dimensions: 78 x 263 x 70 mm
• Tool weight: 3,4 kg
• Hydraulic crimping head
• Plastic case for crimping head and 14 crimping dies
• Compression force (max) (kN) – 130
• Suitable for - Cable lugs and connectors
• Construction/operation - Hydraulic compression head
• Compression shape - Universal (exchangeable inserts)
• Length (mm) – 263
• Net weight single item (kg) - 5.1

PP130-H - Hydraulic Crimping Head 130kN - Intercable Tools

Crimping Heads

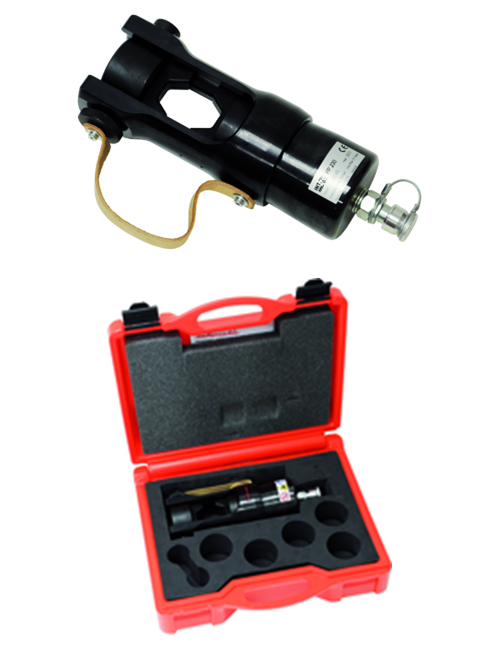

PP230 - Hydraulic Crimping Head 230kN

The unit must be operated through 700 bar hydraulic pump to reach crimping force of 230 kN

Technical Characteristics

• Sturdy and compact structure
• Openable head to make it easy to position and insert the crimping dies
• Quick make snap lock connection and non detachable dust cap
• Tool dimensions: 121 x 286 x 88 mm
• Tool weight: 5,5 kg
• Cross section (min) (mm²) – 10
• Cross section (max) (mm²) – 625
• Length (mm) – 297
• Net weight single item (kg) - 7.16

PP230 - Hydraulic Crimping Head 230kN - Intercable Tools

Crimping Heads

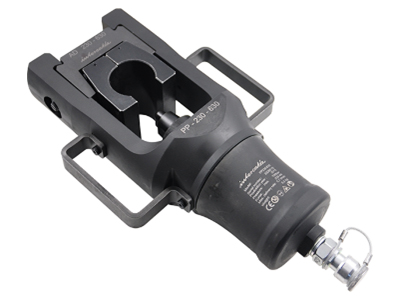

PP230-630 - Hydraulic Crimping Head 230kN - AL

The unit must be operated through 700 bar hydraulic pump to reach crimping force of 230 kN

Technical Characteristics

• Sturdy and compact structure
• The H - Bail allows simple inlaying from the cables
• This pressing tool can be used to crimp aluminium and bimetallic connectors by deep-step indent system
• Tool dimensions:. 105 x 365 x 50 mm
• Tool weight: 8,5 kg
• Hydraulic crimping head
• Metal case
• Cross section (min) (mm²) – 6
• Cross section (max) (mm²) – 630
• Length (mm) – 365
• Net weight single item (kg) - 5.5

PP230-630 - Hydraulic Crimping Head 230kN - AL - Intercable Tools

Crimping Heads

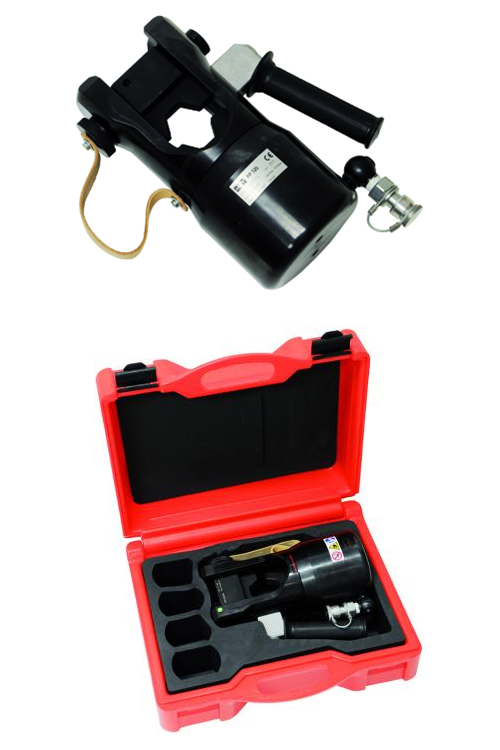

PP520 - Hydraulic Crimping Head 520kN

The unit must be operated through 700 bar hydraulic pump to reach crimping force of 520 kN

Technical Characteristics

• Sturdy and compact structure
• Openable head to make it easy to position and insert the crimping dies
• Quick make snap lock connection and non detachable dust cap
• Tilting system for coupler *Tool dimensions: 218 x 261 x 124 mm
• Tool weight: 13,2 kg
• Hydraulic crimping head
• Plastic case for crimping head and two crimping dies and one adapter
• Cross section (min) (mm²) – 95
• Cross section (max) (mm²) – 1000
• Length (mm) – 261
• Net weight single item (kg) - 15.4

PP520 - Hydraulic Crimping Head 520kN - Intercable Tools

Crimping Heads

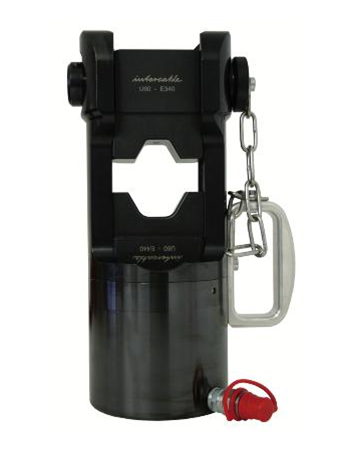

PP600 - Hydraulic Crimping Head 600kN

The unit must be operated through 700 bar hydraulic pump to reach crimping force of 600 kN

Technical Characteristics

• Sturdy and compact structure
• Openable head to make it easy to position and insert the crimping dies
• Quick make snap lock connection and non detachable dust cap
• Tool dimensions: 200 x 335 x 130 mm
• Tool weight: 17 kg
• Hydraulic crimping head
• Metal case for crimping head
• Cross section (min) (mm²) – 16
• Cross section (max) (mm²) – 1600
• Length (mm) – 335
• Net weight single item (kg) – 26
